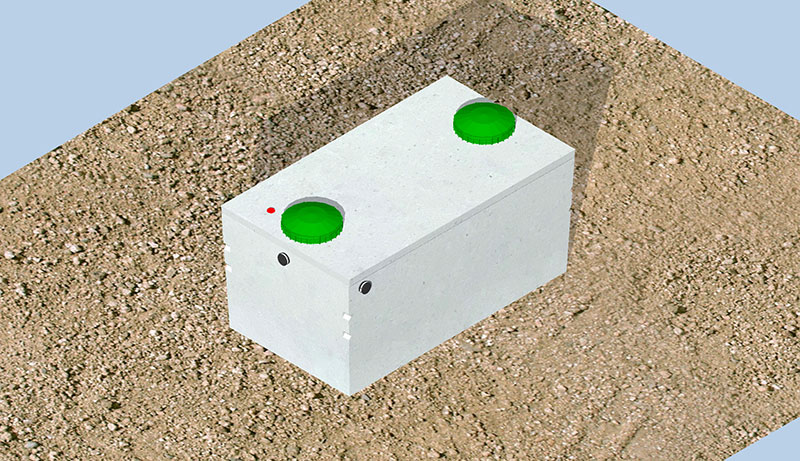

6100 Litre standard septic tank

Centre Inlet :1420mm (56″)
Length :3367mm (133″)
Width :1915mm (75″)
Total Weight :6296 Kg (13,882Lbs)
Working Capacity:6100L (1341 IG

Two 100 X 150 partition flows through. Concrete Inlet Baffle is pre-fitted to accommodate 3 100mm flexible rubber connections. Outlet flexible rubber connections fitted with 100mm filter that meets Ontario Building Code . Cast in place 610mm ID. plastic risers with plastic lid secured with stainless steel fasteners extending 100mm above top of tank.

Designed for up to one metre burial over top of tank – vehicular traffic and up to two metre burial tanks are available upon request.

  • specialty conformation may be possible.
